Seeded by the Big Bang

Planck power spectrum → cosmic web

Project Genesis started from white noise. But the real universe didn't — its initial ripples have a specific power spectrum, measured by Planck. Here we seed structure from the true ΛCDM spectrum (Eisenstein–Hu transfer function, Planck 2018 parameters) and grow it. Filaments, clusters and voids condense with the correct correlations — the same web the real SDSS data shows.

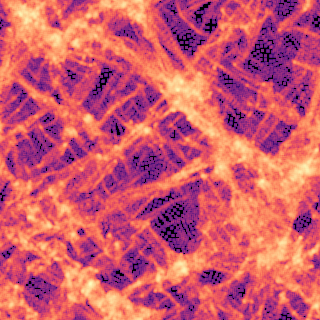

cosmic web grown from the Planck power spectrum

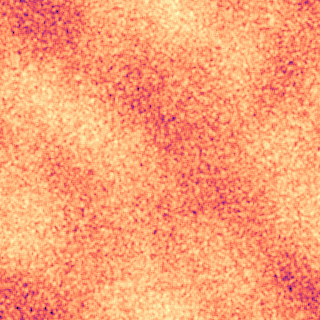

white noise seed
white-noise seed — grainy, no large-scale web
planck seed
Planck seed — real correlations → filaments & voids
What's real. The P(k) plotted at right is the genuine ΛCDM matter power spectrum (Eisenstein–Hu 1998 transfer function, Planck 2018 Ωm=0.315, Ωb=0.049, h=0.674, ns=0.965). Its turnover marks the horizon size at matter–radiation equality — a real, measured scale. The structure is grown with the Zel'dovich approximation, the standard first-order map of how those ripples become the cosmic web. Honest limit: Zel'dovich is first-order (it blurs after shell-crossing) and this is 2-D — a faithful seed-and-grow, not a full N-body simulation. But the initial conditions are the real ones, so the web inherits the universe's true statistics.
